This document is the product specification of Alpha Wire Company, describing the features and specifications of Part Number 6711. The product is a hookup wire with a 26 AWG tinned copper conductor and modified polyphenilether insulation. It is available in multiple colors and meets the UL AWM/STYLE 11028 standard.

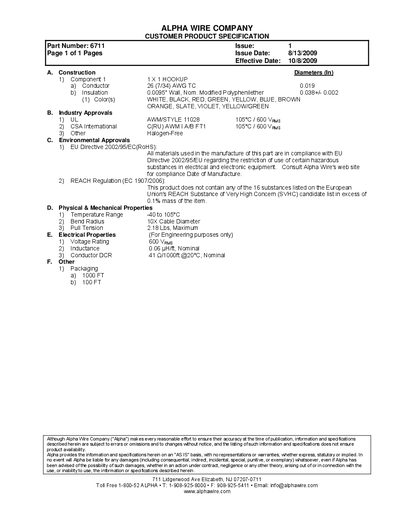

This one‑page Customer Product Specification from Alpha Wire provides key construction details, industry and environmental approvals, and performance characteristics for part number 6711. It is intended for engineers and purchasers needing concise technical data.
The sheet lists dimensions, temperature range, voltage rating, pull tension, bend radius, inductance, and conductor resistance, along with UL and CSA approvals and compliance with RoHS and REACH regulations.
| Conductor size | 26 AWG (0.019 in) |
|---|---|
| Insulation thickness | 0.0095 in |
| Temperature range | -40 to 105°C |
| Voltage rating | 600 Vems |
| Pull tension (max) | 2.18 lbs |
| Bend radius | 10× cable diameter |
| Inductance | 0.06 H/t |
| Conductor DCR | 41 Ω·mm² @20°C |
| UL approval | AWMISTYLE 11028 105°C / 600 Vams |
| CSA approval | C(RU) AWM | A/B FT1 105°C / 600 Vams |
The product operates from –40 °C to 105 °C.
It is approved by UL (AWMISTYLE 11028) and CSA (C(RU) AWM | A/B FT1) for 105 °C / 600 Vams.
