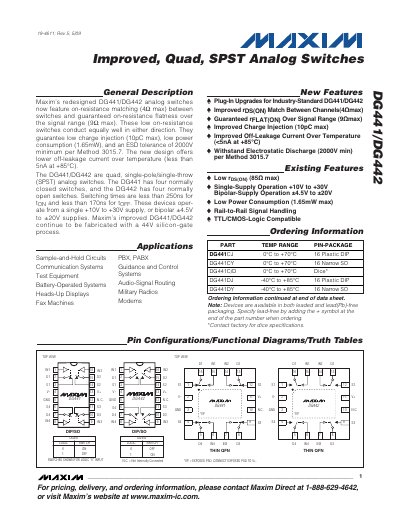

This datasheet provides the specifications of Maxim's DG441/DG442 analog switches. This switch has low on-resistance, low power consumption, and can withstand high voltage electrostatic discharge.
The DG441 and DG442 are quad, single‑pole/single‑throw (SPST) analog switches. The DG441 offers four normally‑closed contacts, while the DG442 provides four normally‑open contacts. Both devices feature on‑resistance matching of up to 4 Ω, flat on‑resistance across the signal range (≤9 Ω), low charge injection (≤10 pC), low power consumption (≤1.65 mW), and an ESD tolerance of 2000 V.
These switches operate from a single +10 V to +30 V supply or bipolar ±4.5 V to ±20 V supplies and are suitable for a wide range of analog signal switching applications, including communication systems, test equipment, and audio‑signal routing. Ordering information, package options, and temperature ranges are provided for various device variants.
| On‑Resistance Matching (rDS(ON)) | 4 Ω max |
|---|---|
| On‑Resistance Flatness (rFLAT(ON)) | 9 Ω max |
| Charge Injection | 10 pC max |
| Power Consumption | 1.65 mW max |
| ESD Tolerance | 2000 V min |
| Switching Time (tON) | <250 ns |
| Switching Time (tOFF) | <170 ns |
| Off‑Leakage Current | <5 nA at +85 °C |
| Supply Voltage Range | +10 V to +30 V single‑supply or ±4.5 V to ±20 V bipolar |
| Operating Temperature Range (DG441C/DG442C) | 0 °C to +70 °C |
The devices have on‑resistance matching of up to 4 Ω max between switches.
They operate from a single +10 V to +30 V supply or bipolar ±4.5 V to ±20 V supplies.
The switches are rated for a minimum of 2000 V ESD protection per Method 3015.7.
Off‑leakage current is less than 5 nA at +85 °C.
