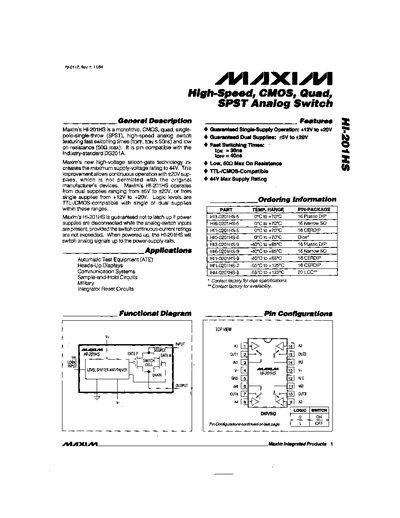

The HI-201HS is a monolithic CMOS quad single‑pole‑single‑throw (SPST) analog switch offering fast switching (30 ns turn‑on) and low on‑resistance (≤50 Ω). It operates from dual supplies ranging from +5 V to +20 V and is pin‑compatible with the industry‑standard DG201A.
Key specifications include a 44 V maximum supply rating, 500 Ω maximum on‑resistance, various DIP, SO and LCC package options, and an operating temperature range from –40 °C to +125 °C. The device is suitable for automatic test equipment, heads‑up displays, communication systems, and sample‑and‑hold circuits.
| Maximum Supply Voltage | 44 V |
|---|---|
| On‑Resistance (max) | ≤50 Ω |
| Package Options | 16‑pin DIP, 16‑pin SO, 16‑pin CERDIP, 20‑pin LCC |
| Operating Temperature Range | -40 °C to +125 °C |
The device is rated for a maximum supply voltage of 44 V.
The on‑resistance is specified as up to 50 Ω (max 500 Ω as listed).
Place a 1N4001 or 1N914 diode in series with the positive and negative supplies.
Yes, it is pin‑compatible with the industry‑standard DG201A.
