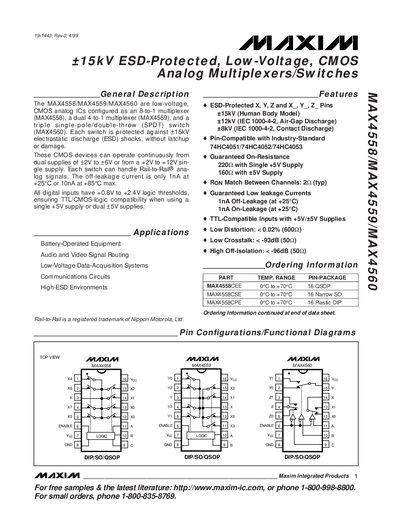

MAX4558/MAX4559/MAX4560 are low-voltage, CMOS analog ICs configured as an 8:1 multiplexer (MAX4558), a dual 4:1 multiplexer (MAX4559), and a triple single-pole/double-throw (SPDT) switch (MAX4560). Each switch is protected against ±15kV electrostatic discharge (ESD) shocks, without latchup or damage. These CMOS devices can operate continuously from ±2V to ±6V of dual supplies or from a +2V to +12V single supply. Each switch can handle Rail-to-Rail® analog signals. The off-leakage current is only 1nA at +25°C or 10nA at +85°C max. All digital inputs have +0.8V to +2.4V logic thresholds, ensuring TTL/CMOS-logic compatibility when using a single +5V supply or dual ±5V supplies.
The MAX4558, MAX4559, and MAX4560 are low‑voltage CMOS analog ICs that function as an 8‑to‑1 multiplexer, a dual 4‑to‑1 multiplexer, and a triple SPDT switch respectively. Each switch is protected against +15 kV electrostatic discharge (ESD) shocks and operates from dual supplies of +2 V to +6 V or a single supply of +2 V to +12 V. The devices handle rail‑to‑rail analog signals, have off‑leakage currents of only 1 nA at 25 °C, and digital inputs with logic thresholds of +0.8 V to +2.4 V.
Key electrical characteristics include a guaranteed on‑resistance of 220 Ω with a single +5 V supply (1600 Ω with dual +5 V supplies), low distortion (<0.02 % THD), and high isolation (>‑96 dB). The family is offered in 16‑lead QSOP, narrow‑SO, and plastic‑DIP packages, with ordering codes MAX4558CEE, MAX4558CSE, and MAX4558CPE among others.
| ESD protection rating | +15 kV (Human Body Model), +12 kV (IEC 1000‑4‑2 Air‑Gap), +8 kV (IEC 1000‑4‑2 Contact) |
|---|---|
| Supply voltage range | Dual +2 V to +6 V or single +2 V to +12 V |
| Off‑leakage current | 1 nA at +25 °C |
| Digital input logic thresholds | +0.8 V to +2.4 V |
| On‑resistance (single +5 V supply) | 220 Ω |
| On‑resistance (dual +5 V supply) | 1600 Ω |
| Maximum continuous current per pin | 10 mA |
The devices are protected against +15 kV human‑body model, +12 kV IEC 1000‑4‑2 air‑gap, and +8 kV IEC 1000‑4‑2 contact discharge.
They can run from dual supplies of +2 V to +6 V or from a single supply of +2 V to +12 V.
The off‑leakage current is specified as 1 nA at 25 °C.
The guaranteed on‑resistance is 220 Ω when powered from a single +5 V supply.
