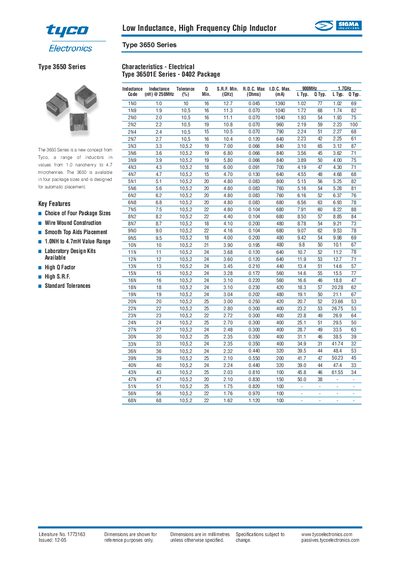

The 3650 series is a new concept from Tyco, a range of inductors in values from 1.0 nanohenry to 4.7 microhenries. The 3650 is available in four package sizes and is designed for automatic placement.
The 3650 Series from Tyco provides low‑inductance, high‑frequency chip inductors ranging from 1 nH to 4.7 µH. They are offered in four standard surface‑mount packages (0402, 0603, 0805, 1008) and feature high Q factors and tight tolerance options for automated placement.
The datasheet lists detailed electrical parameters (inductance, tolerance, Q, SRF, DC resistance), mechanical performance tests, climatic specifications, colour‑coding for ordering, and part‑numbering conventions. It also includes ordering information for each package and series variant.
| Inductance range | 1.0 nH – 4.7 µH |
|---|---|
| Package sizes | 0402, 0603, 0805, 1008 |
| Standard tolerance | ±10 % |
| Operating temperature range | -40 °C to +125 °C |
The inductors cover values from 1.0 nH up to 4.7 µH.
Four surface‑mount packages are offered: 0402, 0603, 0805 and 1008.
The inductors are rated for –40 °C to +125 °C.
Each part is marked with a single colour dot that represents its inductance value; the colour‑coding table is provided in the datasheet.
