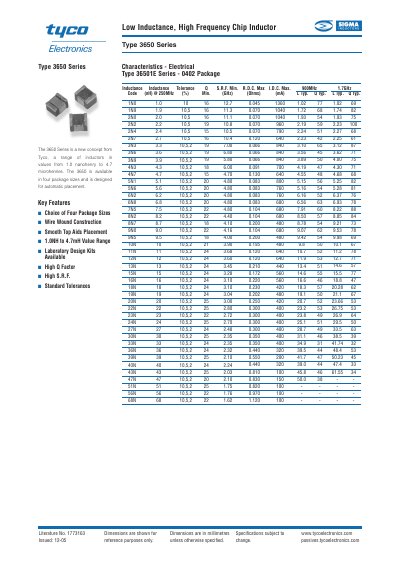

Tyco Electronics 3650 Series Low Inductance High Frequency Chip Inductor Datasheet
The 3650 Series from Tyco Electronics provides low‑inductance, high‑frequency chip inductors in four surface‑mount packages (0402, 0603, 0805, 1008). Each part is designed for automated placement and offers a range of inductance values from 1 nH to 4.7 µH with tight tolerance and high Q factors.
The document lists detailed electrical specifications (inductance, tolerance, Q, SRF, DC resistance), mechanical and environmental test results (vibration, thermal shock, humidity, solderability), and ordering information including colour‑coding and part numbers for each package size.
Tyco 3650 Series specifications
| Inductance range | 1 nH – 4.7 µH |
|---|---|
| Package sizes | 0402, 0603, 0805, 1008 |
| Operating temperature range | -40 °C to +125 °C |
| Soldering temperature | 260 °C |
