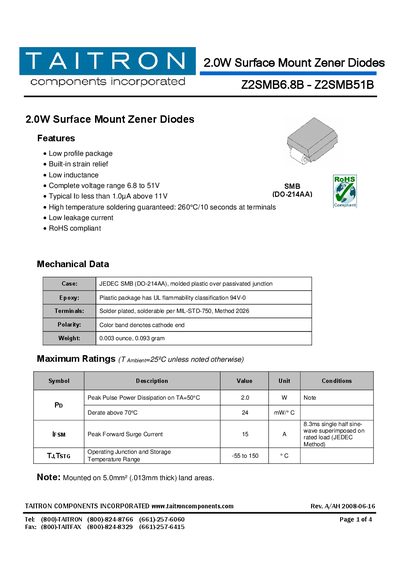

This datasheet lists the characteristics of Z2SMB6.8B - Z2SMB51B 2.0W surface mount zener diodes.
The Z2SMB6.8B‑Z2SMB51B series from TAITRON are 2.0 W surface‑mount Zener diodes offered in a low‑profile SMB (DO‑214AA) package. They feature built‑in strain relief, low inductance, low leakage current and full RoHS compliance, making them suitable for a wide range of voltage regulation applications.
The datasheet provides mechanical data, maximum ratings, and detailed electrical characteristics for each voltage grade from 6.8 V to 51 V. Contact information for TAITRON’s global offices is included for further technical support.
| Voltage Range | 6.8 V to 51 V |
|---|---|
| Typical Reverse Leakage Current | < 1.0 µA above 11 V |
| Peak Forward Surge Current | 15 A |
| RoHS Compliance | Yes |
The Z2SMB series covers Zener voltages from 6.8 V up to 51 V.
Yes, the Z2SMB diodes are RoHS compliant.
The peak forward surge current is rated at 15 A.
