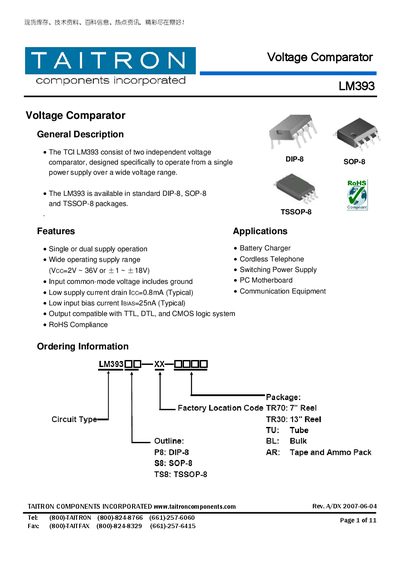

The document describes the LM393 voltage comparator product from TCI, including its features and applications.
The LM393 voltage comparator from TAITRON consists of two independent comparators designed for single‑supply operation from 2 V to 36 V. It offers low supply current (0.8 mA typical), low input bias (25 nA typical) and output compatible with TTL, DTL and CMOS logic.
The device is offered in DIP‑8, SOP‑8 and TSSOP‑8 packages and includes detailed absolute‑maximum ratings, electrical characteristics and typical performance curves such as supply current, output saturation voltage and large‑signal gain.
| Supply Voltage (Vcc) | +18 V to 36 V |
|---|---|
| Input Bias Current (IBias) | 25 nA (Typical) |
| Input Offset Current | 5 nA to 50 nA |
| Output Saturation Voltage | 160 mV to 400 mV |
| Large Signal Voltage Gain | 50 to 200 |
| Supply Current (Icc) | 0.8 mA (Typical) |
| Input Common‑Mode Voltage | 0 V to Vcc‑1.5 V |
| Operating Temperature Range | -40 °C to 85 °C |
| Storage Temperature Range | -65 °C to 150 °C |
| Package Types | DIP‑8, SOP‑8, TSSOP‑8 |
The LM393 can be powered from a supply voltage of +18 V up to 36 V.
The typical supply current is 0.8 mA.
The input bias current is 25 nA typical.
The LM393 is offered in DIP‑8, SOP‑8 and TSSOP‑8 packages.
