This document describes the features and characteristics of the 1.5SMC6.8A - 1.5SMC250CA 1500W Surface Mount Transient Voltage Suppressor, including low inductance, excellent clamping capability, fast response time, high temperature soldering guarantee, etc.

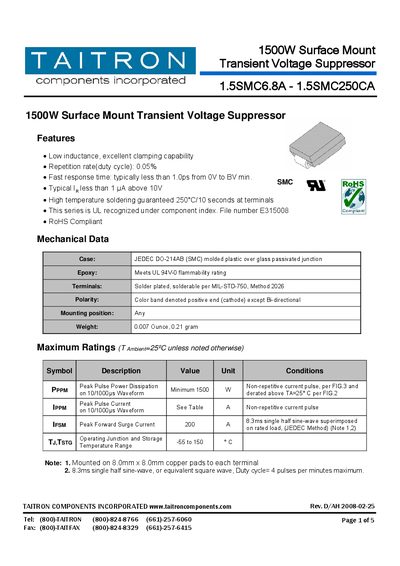

The document provides specifications for the TAITRON 1.5SMC series of Transient Voltage Suppressors (TVS), covering part numbers from 1.5SMC6.8A to 1.5SMC250CA. Key features include low inductance, excellent clamping capability, and a fast response time of typically less than 1.0ps.
| Peak Pulse Power Dissipation | 1500 W |
|---|---|
| Repetition rate (duty cycle) | 0.05% |
| Operating Junction and Storage Temperature | -55 to 150 °C |
| Peak Forward Surge Current (I Fsm) | 200 A |
The device guarantees high-temperature soldering up to 250°C for 10 seconds at the terminals.
The maximum duty cycle is 4 pulses per minute.
Each component weighs 0.21 gram or 0.007 ounce.
