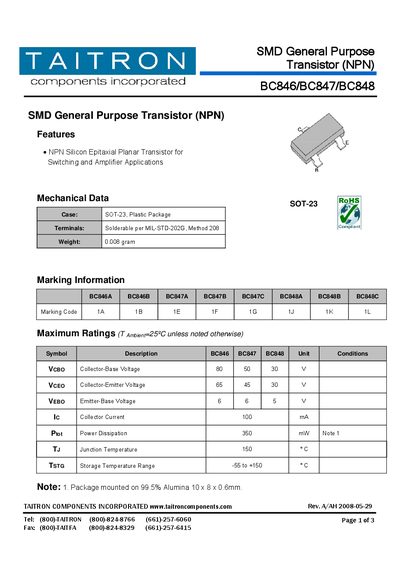

Datasheet for TAITRON BC846/BC847/BC848 SMD NPN transistors with specifications, ratings and mechanical data.
The TAITRON BC846/BC847/BC848 series are NPN silicon planar transistors offered in an SOT‑23 plastic package. They are intended for switching and amplifier applications and feature solderable terminals per MIL‑STD‑202G.
The document provides mechanical dimensions, maximum ratings, electrical characteristics, and contact information for TAITRON components worldwide.
| Collector‑Base Voltage (VCBO) | 80 V (BC846), 50 V (BC847), 30 V (BC848) |
|---|---|
| Collector‑Emitter Voltage (VCEO) | 65 V (BC846), 45 V (BC847), 30 V (BC848) |
| Emitter‑Base Voltage (VEBO) | 6 V (BC846/BC847), 5 V (BC848) |
| Collector Current (IC) | 100 mA |
| Power Dissipation (Ptot) | 350 mW |
| Junction Temperature (TJ) | 150 °C |
| Storage Temperature Range | -55 °C to +150 °C |
It uses an SOT‑23 plastic package.
The maximum collector current is 100 mA.
The transistors can be stored from –55 °C to +150 °C.
