LM358 is a dual operational amplifier from Taitron, with high gain, internal frequency compensation, and supports single and split power supply. It is used in applications such as battery charger, cordless telephone and switching power supply.

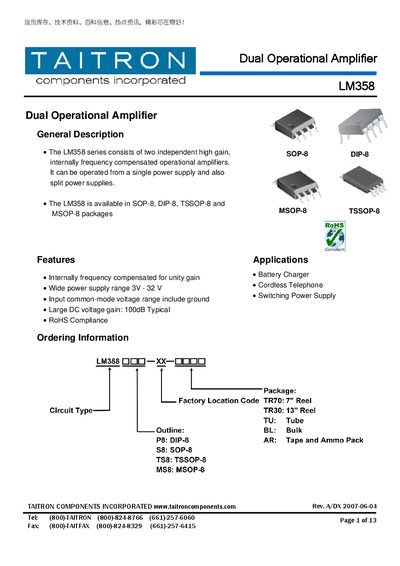

The LM358 is a dual operational amplifier offered in SOP‑8, DIP‑8, TSSOP‑8 and MSOP‑8 packages. It can operate from a single or split power supply and is RoHS‑compliant.
Key specifications include a wide supply voltage range, high DC gain, low offset voltage, and robust output current capability. Typical application circuits such as voltage followers, amplifiers, and battery chargers are illustrated.
| Supply voltage range | 3 V – 32 V |
|---|---|
| Maximum supply voltage (Vcc) | +16 V |
| DC voltage gain | 100 dB (typical) |
| Input offset voltage | 2.9 mV (typical) |
| Input bias current | 45 nA – 250 nA |
| CMRR | 65 dB – 80 dB |
| PSRR | 65 dB – 100 dB |
The LM358 operates from 3 V up to 32 V.
It provides a typical DC voltage gain of 100 dB.
The typical input offset voltage is 2.9 mV.
The maximum Vcc rating is +16 V.
