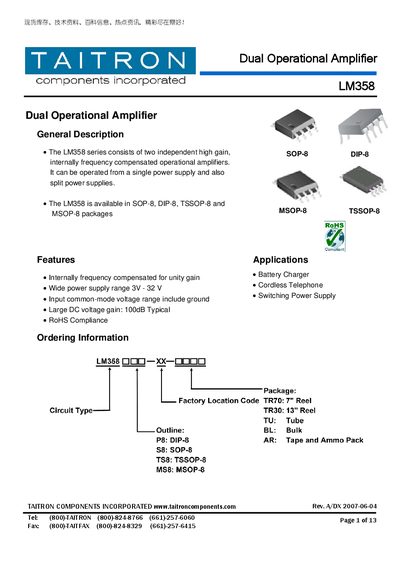

The LM358 is a dual operational amplifier from Taitron Components. It features internally frequency compensated, can be operated from a single or dual power supply, has a wide power supply range, input common-mode voltage range includes ground, large DC voltage gain, and can be used in applications such as battery chargers, cordless telephones, and switching power supplies.
The LM358 series consists of two independent high‑gain, internally frequency‑compensated operational amplifiers that can operate from a single or split power supply. It is offered in SOP‑8, DIP‑8, TSSOP‑8 and MSOP‑8 packages and complies with RoHS.
The document lists absolute maximum ratings, electrical characteristics, typical performance curves, and example circuits such as voltage followers, amplifiers, and current‑limiting applications, along with ordering information and contact details for Taitron worldwide.
| Maximum Supply Voltage (Vcc) | +16 V |
|---|---|
| Input Common‑Mode Voltage Range | 0 V to VCC‑1.5 V |
| Typical Input Offset Voltage | 2.9 mV |
| CMRR (typical) | 65 dB |
The LM358 can be powered up to +16 V.
The input common‑mode range is 0 V to VCC‑1.5 V.
Typical input offset voltage is about 2.9 mV.
