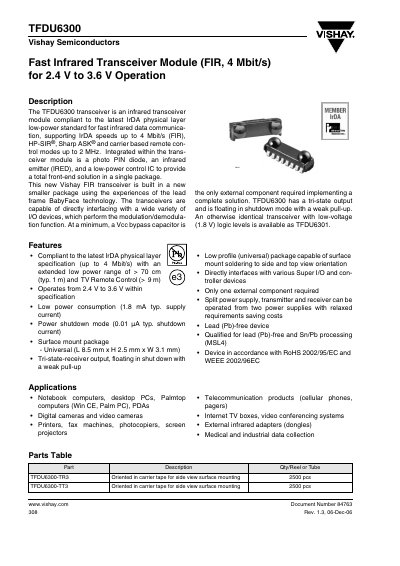

The TFDU6300 is a fast infrared transceiver module from Vishay Semiconductors that operates from 2.4V to 3.6V and supports IrDA speeds up to 4Mbit/s (FIR), HP-SIR, Sharp ASK and carrier based remote control modes up to 2MHz.
The TFDU6300 transceiver complies with the latest IrDA physical‑layer standard and provides FIR (4 Mbit/s), HP‑SIR, Sharp ASK and carrier‑based remote‑control modes. It integrates a photo PIN diode, an infrared emitter (IRED) and a low‑power control IC in a single surface‑mount package, requiring only a VCC bypass capacitor for a complete front‑end solution.
Typical applications include notebook and desktop computers, PDAs, digital cameras, printers, fax machines, telecom devices, and external infrared adapters. The datasheet details pin functions, electrical and optoelectronic characteristics, recommended circuit diagrams, mode‑switching procedures, and soldering guidelines.
| Dynamic supply current (FIR mode) | 3.3 mA typical |
|---|---|
| Package dimensions (Universal) | L 8.5 mm × H 2.5 mm × W 3.1 mm |
