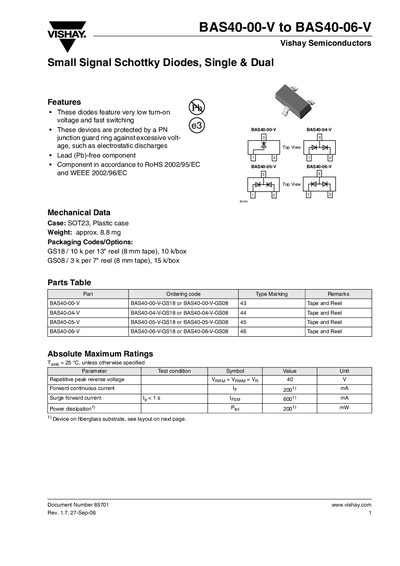

This datasheet provides product information for the BAS40-00-V to BAS40-06-V series Schottky diodes, including package type, absolute maximum ratings, power dissipation, thermal characteristics, etc.
The BAS40 series Schottky diodes (BAS40-00-V to BAS40-06-V) feature very low turn‑on voltage, fast switching, and a PN junction guard ring for ESD protection. They are lead‑free and comply with RoHS 2002/95/EC and WEEE 2002/96/EC directives.
The devices are supplied in SOT‑23 plastic cases weighing about 8.8 mg, with tape‑and‑reel packaging options (GS18 or GS08). The datasheet lists absolute maximum ratings, thermal and electrical characteristics, and includes a layout diagram and policy statements regarding ozone‑depleting substances and legal disclaimer.
| Case type | SOT23, Plastic case |
|---|---|
| Weight | approx. 8.8 mg |
| Forward continuous current | 200 mA |
| Maximum junction temperature | 125 °C |
| Storage temperature range | -65 °C to +125 °C |
They are offered on tape‑and‑reel reels: GS18 (10 k per 13" reel) and GS08 (3 k per 7" reel).
The storage temperature range is –65 °C to +125 °C.
