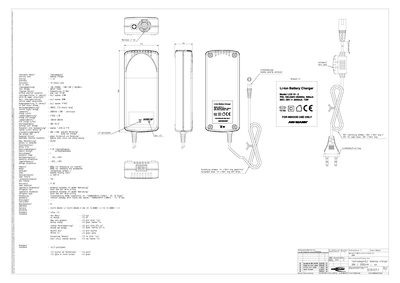

The ANSMANN 9294047 is a battery charger intended for indoor use. The leaflet provides key electrical parameters, physical dimensions, and compliance information.
Key features include a 36 VDC input, up to 2 A output current, and power ratings of approximately 25 W, 85 W and 41 V OC. The device meets EN 60335‑1, IEC 60335‑2‑29, EN 60601‑1 and EN 59891‑1‑2 safety standards and is supplied with a Europlug connector.
| Input Voltage | 36 VDC |
|---|---|
| Maximum Output Current | 2000 mA |
| Power Approximation 1 | 25 W |
| Power Approximation 2 | 85 W |
| Voltage Output Approximation | 41 V OC |
| Dimensions (L×W×H) | 115 × 50 × 229 mm |
| Alternate Dimensions | 115 × 60 × 220 mm |
| Operating Temperature Range | -35 °C to +70 °C |
| Connector Type | Europlug |
The charger operates from a 36 VDC input.
The charger measures 115 × 50 × 229 mm (L × W × H).
