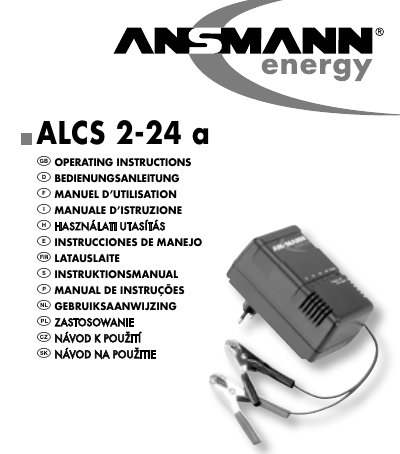

ALCS 2-24 a GB is the operating instructions for an automatic lead acid battery charger, suitable for 2 V to 24 V sealed lead acid batteries with a capacity range of 2.4 Ah to 24 Ah.
The ANSMANN ALCS 2-24 A charger automatically adjusts to sealed lead‑acid batteries from 2 V to 24 V with capacities between 2.4 Ah and 24 Ah. It provides automatic voltage selection, overload and short‑circuit protection, polarity protection, and supports float and trickle charging.
The device uses LED indicators to show charging status and battery voltage. Safety warnings include the risk of explosive gases during charging and the need for proper ventilation. Maintenance requires only a dry cloth and the charger must be disconnected from mains before cleaning.
| Nominal voltage (2 V) | 2 V |
|---|---|
| End‑of‑charge voltage (2 V) | 2.3 V |
| Charging current (2 V) | 900 mA |
| Nominal voltage (6 V) | 6 V |
| End‑of‑charge voltage (6 V) | 6.9 V |
| Charging current (6 V) | 700 mA |
| Nominal voltage (12 V) | 12 V |
| End‑of‑charge voltage (12 V) | 13.8 V |
| Charging current (12 V) | 600 mA |
| Nominal voltage (24 V) | 24 V |
| End‑of‑charge voltage (24 V) | 27.6 V |
| Charging current (24 V) | 300 mA |
It charges sealed lead‑acid batteries from 2 V to 24 V with capacities between 2.4 Ah and 24 Ah.
A red LED lights while the battery is charging; it turns off when charging ends and the charger switches to trickle mode.
