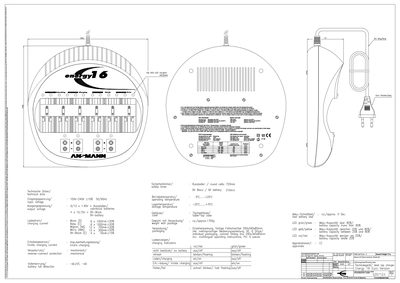

The ANSMANN Energy 16 is a desktop battery charger designed for a range of cylindrical cells (D, C, AA, AAA) and 9 V block batteries. It operates from a universal AC input of 100 V‑240 V at 50/60 Hz and provides selectable output voltages for different battery types.
Key features include reverse‑connect protection, a safety timer, LED status indicators, and CE approval. The unit weighs approximately 1.7 kg and is shipped in a colored folding box measuring 290 × 340 × 85 mm, with multilingual operating instructions included. This manual is written in German.
| Input voltage | 100 V‑240 V 50/60 Hz |
|---|---|
| Output voltage per cell | 1.45 V |
| Mono (D) charging current | 1000 mA |
| C (AA) charging current | 700 mA |
| Weight with packaging | ≈1.7 kg |
| Package dimensions | 290 × 340 × 85 mm |
It accepts an AC input of 100 V to 240 V at 50/60 Hz.
The charger weighs approximately 1.7 kg with packaging.
The packaging measures 290 mm × 340 mm × 85 mm.
It can charge cylindrical cells (D, C, AA, AAA) and 9 V block batteries.
