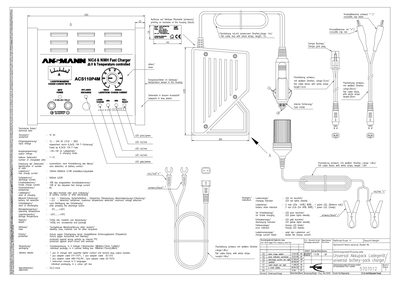

The ACS110P4M is a fast charger for NiCd and NiMH batteries, offering adjustable charge currents from 100 mA to 4 A with a 10 % tolerance. It supports an input voltage range of 12 V to 24 V, includes protection against reverse polarity, short‑circuit, and overload, and features a safety timer of 6 hours.
The charger indicates its status via red, green, and yellow LEDs for charging, trickle‑charge, and error conditions. It comes with flat cables of various lengths (12 cm, 1.8 m) and crocodile clips, and is supplied in a colour‑coded folding box with IP20 protection rating. This manual is written in German.
| Input voltage | 12 V – 24 V |
|---|---|
| Fast charge current | 100 mA – 4000 mA (adjustable +10 %) |
| Fuse | 6.3 × 32 × 154 F |
| Cable length (flat cable) | 1.8 m |
The charger operates with an input voltage between 12 V and 24 V.
