The ANSMANN APS 1012 is a plug‑in power supply with a primary input of 230 V AC at 50 Hz and selectable secondary voltages ranging from 1.5 V to 12 V. It delivers up to 1000 mA at lower voltages and 900 mA at 12 V, with a power rating of 22.5 W.

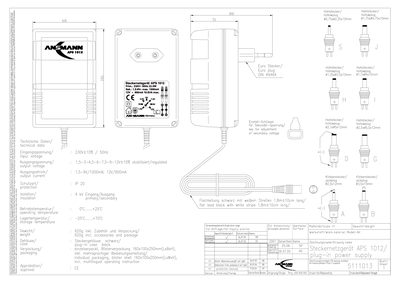

The document lists technical data such as protection class IP20, 4 kV isolation, operating temperature range, storage conditions, weight (620 g) and packaging dimensions. It also includes drawing numbers and approval information. This manual is written in German.
| Output voltage | 1.5‑3‑4.5‑6‑7.5‑9‑12 V (regulated) |
|---|---|
| Output current | 1.5‑9 V: 1000 mA; 12 V: 900 mA |
| Power rating | 22.5 W |
| Protection class | IP20 |
| Isolation voltage | 4 kV |
| Storage temperature | -25 °C to +70 °C |
| Weight | 620 g incl. accessories and packaging |
Selectable secondary voltages are 1.5 V, 3 V, 4.5 V, 6 V, 7.5 V, 9 V and 12 V.
The unit provides up to 1000 mA for 1.5‑9 V outputs and 900 mA at 12 V.
It has an IP20 protection rating.
