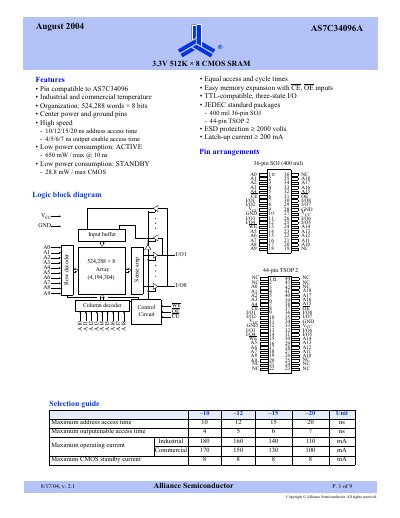

AS7C34096A is a 512K×8 CMOS SRAM manufactured by Alliance Semiconductor. It has industrial and commercial temperature range, up to 650 mW maximum ACTIVE power consumption, 28.8 mW maximum STANDBY power consumption, 400 mil 36-pin SOJ and 44-pin TSOP 2 standard packages.
The AS7C34096A SRAM is organized as 524,288 words × 8 bits (4,194,304 bits) and operates from a single 3.3 V supply. It offers high‑speed address access times of 10‑20 ns and output‑enable times of 4‑7 ns, with low active (650 mW) and standby (28.8 mW) power consumption. The device is pin‑compatible with the AS7C34096 and features TTL‑compatible three‑state I/O.
Electrical specifications include a supply voltage range of 3.0‑3.6 V, commercial temperature range 0 °C to 70 °C (industrial –40 °C to 85 °C), and absolute maximum ratings such as 2000 V ESD protection. The SRAM is offered in JEDEC‑standard 400 mil 36‑pin SOJ and 44‑pin TSOP 2 packages, with detailed ordering codes for commercial and industrial temperature grades.
| Organization | 524,288 words × 8 bits |
|---|---|
| Supply voltage | 3.3 V (3.0‑3.6 V range) |
| Address access time | 10‑20 ns |
| Output enable access time | 4‑7 ns |
| Active power consumption | 650 mW @ 10 ns |
| Standby power consumption | 28.8 mW max |
| Commercial temperature range | 0 °C to 70 °C |
| Package options | 400 mil 36‑pin SOJ, 44‑pin TSOP 2 |
The SRAM operates from a 3.3 V supply, with a recommended range of 3.0 V to 3.6 V.
Address access time is 10‑20 ns and output‑enable access time is 4‑7 ns.
It is offered in a 400 mil 36‑pin SOJ and a 44‑pin TSOP 2 package.
Standby power consumption is up to 28.8 mW.
