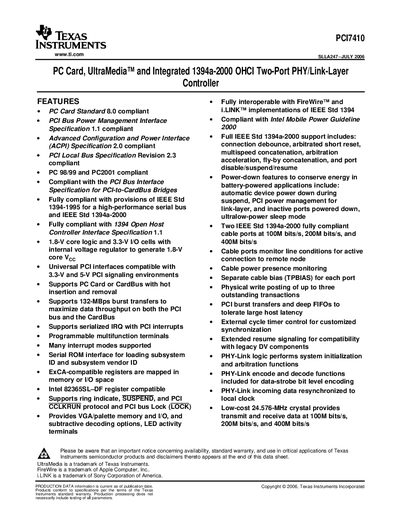

PCI7410 SLLA247 is TI's PC Card, UltraMedia™ and Integrated 1394a-2000 OHCI Two-Port PHY/Link-Layer Controller that is fully interoperable with FireWire™ and i.LINK™ implementations of IEEE Std 1394 and supports IEEE Std 1394a-2000 connection, short reset, multispeed concatenation, arbitration acceleration, fly-by concatenation and port disable/suspend/resume
The PCI7410 is an integrated UltraMedia™ PC Card controller that combines a PCI‑Bus interface, an IEEE 1394 Open Host Controller (OHCI) link‑layer, and a dedicated SD/MMC/Memory‑Stick socket. It supports hot‑insertion, 132‑MBps burst transfers, and multiple power‑management modes, making it suitable for high‑performance PC and battery‑powered applications.
The device complies with numerous industry standards (PCI Local Bus Rev 2.3, ACPI 2.0, IEEE 1394‑a 2000, etc.), offers three 1394 port speeds (100 M, 200 M, 400 M bits/s), and is available in ACTIVE BGA and LQFP packages. Mechanical drawings and packaging information are provided for design integration.
| PCI Bus Power Management Interface Specification | 1.1 compliant |
|---|---|
| Advanced Configuration and Power Interface (ACPI) Specification | 2.0 compliant |
| PCI Local Bus Specification | Revision 2.3 compliant |
| Burst Transfer Rate | 132 MBps |
| 1394 Port Speeds | 100 M, 200 M, 400 M bits/s |
| Core Logic Voltage | 1.8 V |
| External Crystal Frequency | 24.576 MHz |
| Maximum PCI Clock Rate | 33 MHz |
| Package Type (GHK) | ACTIVE BGA, 209 pins |
Yes, it complies with the Advanced Configuration and Power Interface (ACPI) Specification 2.0.
The two 1394 ports operate at 100 M, 200 M, and 400 M bits per second.
