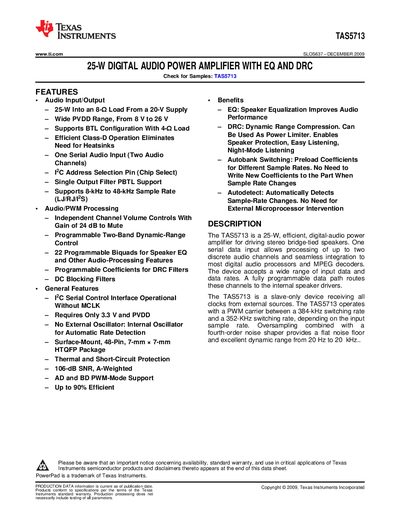

The TAS5713 is a 25-W, efficient, digital-audio power amplifier for driving stereo bridge-tied speakers. It features EQ and DRC, supports BTL configuration, eliminates the need for heatsinks, and supports a sample rate range of 8kHz to 48kHz.
The TAS5713 digital‑audio power amplifier delivers up to 25 W into an 8‑Ω load from a 20 V supply. It supports 8‑kHz to 48‑kHz sample rates, offers 22 programmable biquads for speaker EQ, and includes a two‑band dynamic‑range compressor for speaker protection and night‑mode listening.
The device is supplied in a 48‑pin 7 mm × 7 mm HTQFP package, requires only 3.3 V and PVDD, and features an internal oscillator for automatic rate detection, eliminating the need for an external clock. Thermal and short‑circuit protection are built in, and efficiency can reach up to 90 %.
| Supply Voltage Range (PVDD) | 8 V to 26 V |
|---|---|
| Efficiency | Up to 90 % |
| Signal‑to‑Noise Ratio | 106 dB A‑weighted |
| Sample‑Rate Support | 8 kHz to 48 kHz |
| Package | 48‑pin HTQFP, 7 mm × 7 mm |
| Protection Features | Thermal and short‑circuit protection |
The device operates with PVDD between 8 V and 26 V.
No, it includes an internal oscillator for automatic rate detection.
It provides thermal protection and short‑circuit protection.
The amplifier can achieve up to 90 % efficiency.
