HA-2540 is a high performance operational amplifier from Intersil that features high output power and low noise characteristics. It is suitable for large signal audio and video circuits.
The HA-2540 is a wideband, very high‑slew‑rate monolithic operational amplifier featuring a 400 V/µs slew rate, 400 MHz gain‑bandwidth product, and low input noise. It is designed for high‑speed video, pulse amplification, and wideband signal applications, delivering up to +10 V output swing into a 1 kΩ load.

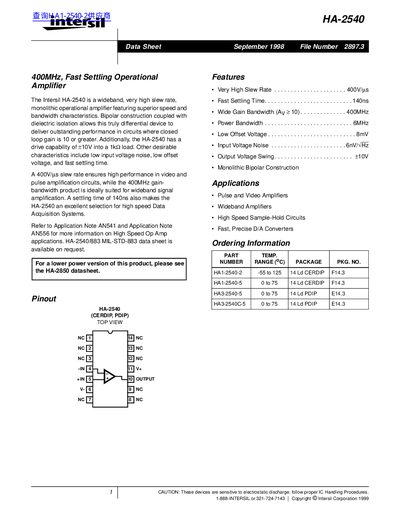

The document lists absolute maximum ratings, operating temperature ranges, thermal information, and detailed electrical specifications for the HA‑2540 and its variants (HA‑2540‑2, HA‑2540‑5, HA‑2540C‑5). It also includes typical performance curves, test circuit diagrams, and package options (CERDIP, PDIP).
