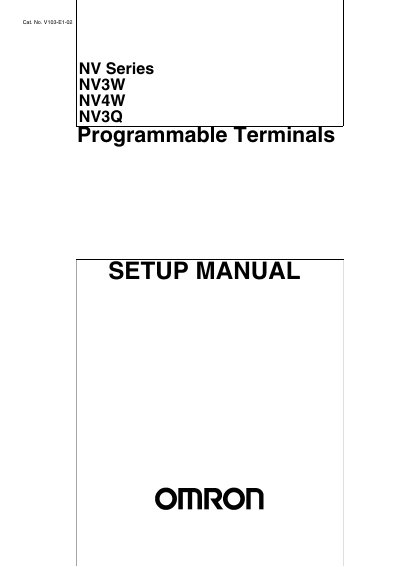

Omron NV3W/NV4W/NV3Q Programmable Terminal Setup Manual

This document is a setup manual for OMRON NV Series Programmable Terminals NV3W, NV4W, and NV3Q. The document provides instructions for using the products and includes precautions, as well as information on the features and characteristics of the products.

Brand: Omron
Category: Professional medical equipment
Document type: User Manual
Language: English
Pages: 149
File format: PDF
File size: 3.3 MB
Published: 07 May, 2012
Updated: 28 September, 2023
MD5 checksum: 0048411BEB808F7396A39FC300BA5381
PDF: Omron NV3W/NV4W/NV3Q Programmable Terminal Setup Manual PDF

About this manual

The Omron NV-series programmable terminals provide flexible I/O and communication options for industrial automation. This manual introduces the NV3W, NV4W, and NV3Q models, their system configurations, and key specifications.

It guides users through preparation, installation, wiring, menu configuration, PLC/temperature controller connections, and maintenance procedures, including safety precautions and troubleshooting steps.

What's inside

Overview
Part Names, Functions, and Internal Configuration
Preparations for Operation
Installing and Wiring the PT
System Menu
Connecting and Setting PLCs or Temperature Controllers
Maintenance and Troubleshooting
Specifications
Revision History

Specifications

Operating voltage range (NV3W)	21.6 to 26.4 VDC
Power consumption (NV3W)	2 W max. (80 mA max.)
Dimensions (NV3W)	110 × 72 × 28 mm (W × H × D)
Weight (NV3W)	160 g max.
Environmental protection	IP65
Ambient operating temperature	0 °C to 50 °C

Frequently asked questions

What is the operating voltage range for the NV3W model?

The NV3W operates from 21.6 VDC to 26.4 VDC.

What does the !DANGER symbol indicate in the manual?

It indicates an imminently hazardous situation that could cause death or serious injury.

How should the waterproof packing be handled when reinstalling the PT?

The waterproof packing must be replaced each time the PT is reinstalled.
