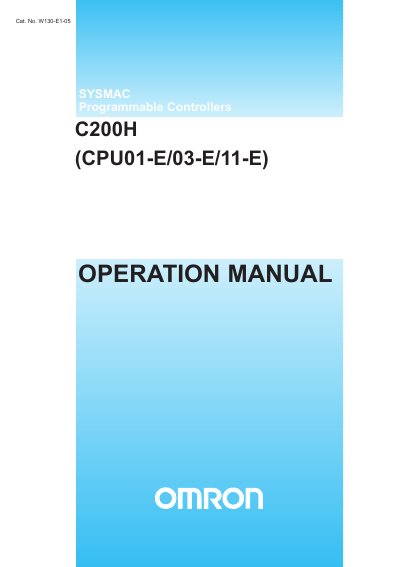

This document is the operation manual for OMRON C200H programmable controllers (CPU01-E/03-E/11-E), providing information on how to use the product and important precautions.
This manual provides detailed information on the Omron C200H rack‑type programmable controllers, covering hardware configuration, memory organization, ladder‑logic programming, instruction sets and execution timing. It also includes safety precautions, installation guidance, and a comprehensive troubleshooting section.
Appendices list all compatible I/O and expansion modules, their specifications, and wiring information, while the glossary and index help locate terminology used throughout the document. This manual is written in Chinese.
| CPU Rack Voltage (CPU01‑E) | 100 to 120/200 to 240 VAC |
|---|---|
| Memory Unit Capacity (CMOS‑RAM Unit) | UM: 3K words; DM: 1K words |
