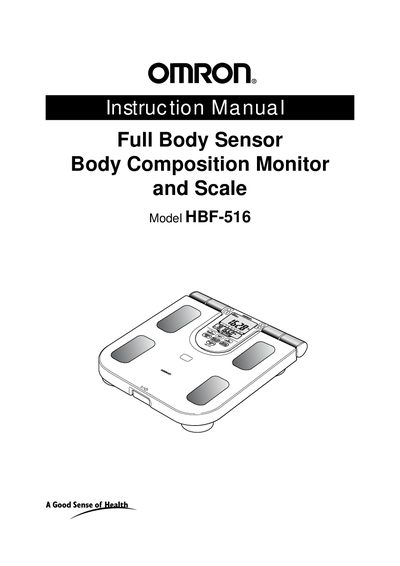

Instruction manual for OMRON HBF-516 Full Body Sensor Body Composition Monitor and Scale, which introduces the product's usage method, usage precautions, measurement principle, etc.
The Omron HBF-516 Full Body Sensor Body Composition Monitor and Scale is a home‑use device that estimates body weight, body fat, skeletal muscle, BMI, visceral fat, resting metabolism, and body age using bioelectrical impedance. It supports up to four personal profiles and stores measurement history for up to 187 days.
This manual covers safety information, battery installation, date/time and personal data setup, step‑by‑step measurement instructions, how to read and interpret results, memory function usage, care and maintenance, troubleshooting, warranty details, and full technical specifications.
| Body Weight range | 0 to 330 lb (0 to 150 kg) with 0.2 lb (0.1 kg) increments |
|---|---|
| Body Fat Percentage range | 5.0 to 60.0 % with 0.1 % increments |
| Skeletal Muscle Percentage range | 5.0 to 50.0 % with 0.1 % increments |
| BMI range | 7.0 to 90.0 with 0.1 increments |
| Resting Metabolism range | 385 to 3999 kcal with 1 kcal increments |
| Body Age range | 18 to 80 years |
| Visceral Fat Level | 30 levels with 1 level increments |
| Power Supply | 4 AA batteries |
| Battery Life | Approximately 1 year (four uses per day) |
| Operating Temperature | +50°F to +104°F (+10°C to +40°C), 30‑85 % RH |
| Dimensions (Display Unit) | ≈11 ¾" W × 1 ⅜" H × 5 ¾" D |
| Weight | ≈4 ⅞ lb (including batteries) |
The monitor can store data for up to four personal profiles.
It is powered by four AA batteries.
