The H7CR is a digital counter produced by Panasonic. It has a prescaling function that can display the units of actual physical parameters (length, volume, etc.). The H7CR-C/SC large/small discrimination mode is useful for positioning and production control. A high response speed allows 5000 counts per second. A high-visibility LCD display with built-in backlight. Online change of set value possible. Meets UL and CSA standards. Conforms to EN61010-1 standard. The H7CR-S short type is only 64 mm deep. H7CR-8/11 plug-in types can be DIN-track mounted. H7CR-8 has a built-in power supply reset function. Conforms to EMC standards. Six-language instruction manual provided.

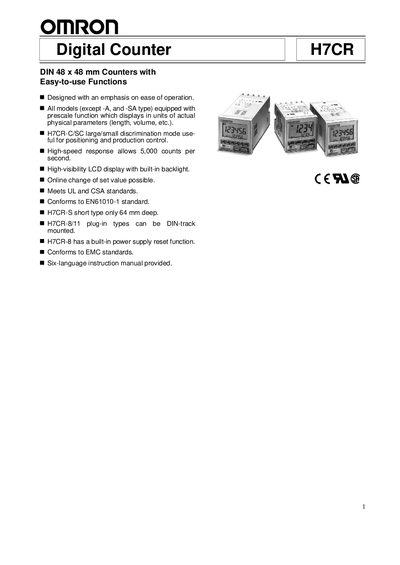

This manual describes the Omron H7CR series of DIN‑mount digital preset counters. It covers model variants, mounting options, input and output modes, prescaling, memory backup, and safety precautions. Technical data such as ratings, power supply requirements, and counting speeds are listed.
The document also includes wiring diagrams, DIP‑switch settings, and troubleshooting guidance, helping users install, configure, and maintain the counters in industrial automation environments.
