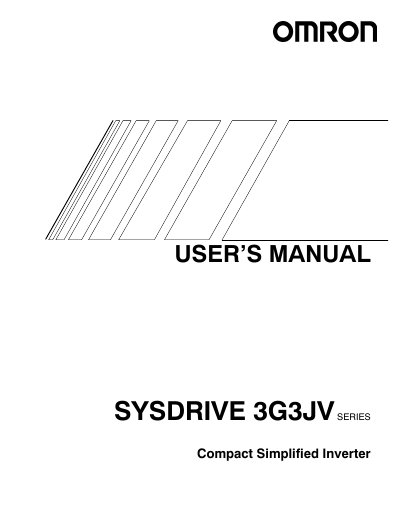

This user manual provides detailed information on the functions and usage of the SYSDRIVE 3G3JV series inverter, and also includes usage precautions.
This manual begins with safety and general precautions for the SYSDRIVE 3G3JV inverter, including warnings about high‑voltage parts, handling, and required protective measures before unpacking or servicing. It also details transportation, installation, and wiring requirements, emphasizing proper grounding and the need for qualified personnel.
Later sections cover operation and adjustment, maintenance, specifications, and accessories. Detailed tables list rated voltage, power capacity, motor compatibility, control methods, and other technical data, while the revision history records updates to the document.
| Rated voltage and frequency | 200‑230 V AC, 50/60 Hz (3‑phase) / 200‑240 V AC, 50/60 Hz (single‑phase) |
|---|---|
| Heat radiation | 13.0 – 149.1 W (3‑phase), 14.1 – 82.8 W (single‑phase) |
| Weight | 0.5 – 2.1 kg (3‑phase), 0.5 – 1.5 kg (single‑phase) |
| Rated output current | 0.8 – 17.5 A |
| Control method | Sine wave PWM (V/f control) |
| Carrier frequency | 2.5 – 10.0 kHz |
| Frequency range | 0.1 – 400 Hz |
| Digital command accuracy | ±0.01 % (–10 °C to 50 °C) |
| Analog command accuracy | ±0.5 % (25 °C ± 10 °C) |
| Grounding requirement | ≤100 Ω for 200‑V class, ≤10 Ω for 400‑V class |
The inverter contains dangerous high‑voltage parts and must not be opened under any circumstances; attempting to do so can cause electric shock or injury.
Transport the unit by holding the radiation fin (heat sink) rather than the front cover, use the eye‑bolts for lifting, and avoid pulling on cables.
Connect the ground terminals to a resistance of 100 Ω or less for 200‑V AC models, or 10 Ω or less for 400‑V AC models.
