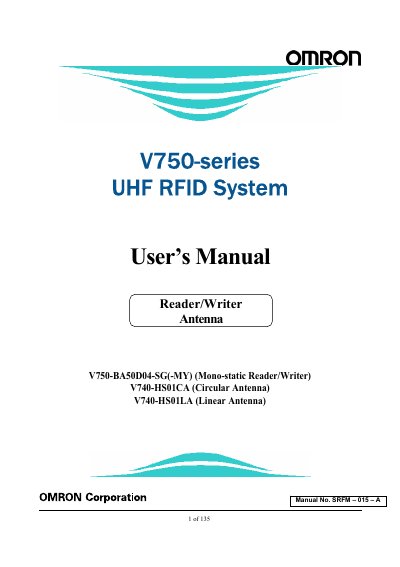

OMRON's V750-series UHF RFID System User's Manual. This manual provides information on how to use the system, including the reader/writer, antennas, and tags.
This manual covers safety precautions, handling, and environmental requirements for the V750-series UHF RFID system, including the mono‑static reader/writer (V750-BA50D04‑SG) and its circular and linear antennas. It explains proper grounding, cable connections, and the need to avoid water, chemicals, and excessive vibration.
Installation guidance includes connecting and disconnecting power and signal cables, securing mounting screws, and ensuring correct polarity. The document also details the ISM frequency bands used (920‑925 MHz and 919‑923 MHz) and advises on minimizing radio interference with nearby equipment.
| Operating temperature range | -10 °C to +50 °C |
|---|---|
| Storage temperature range | -25 °C to +65 °C |
| Relative humidity range (operating) | 25 %RH to 85 %RH |
| Frequency band (V750‑BA50D04‑SG) | 920 MHz – 925 MHz |
| Frequency band (V750‑BA50D04‑SG‑MY) | 919 MHz – 923 MHz |
The system can operate in environments from –10 °C to +50 °C.
It uses the 920 MHz to 925 MHz ISM band.
No, the device must not be exposed to water; doing so may cause electric shock, fire, or failure.
The allowed operating humidity is 25 %RH to 85 %RH (non‑condensing).
