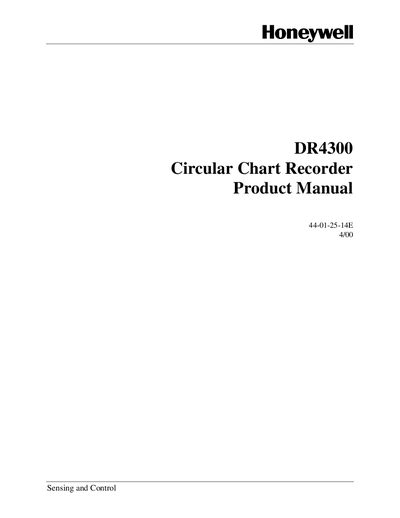

DR4300 Circular Chart Recorder Product Manual introduces the features and characteristics of the product.
This manual covers the DR4300 Circular Chart Recorder, detailing its installation, mounting options, wiring prerequisites, and input/output connections. It also explains configuration, startup procedures, and how to use the optional display and keypad.
Additional sections describe routine maintenance, parts replacement, calibration of inputs and outputs, troubleshooting of common failures, and programming of setpoint ramp/soak profiles. Contact information for Honeywell technical support and service centers is provided at the end of the document.
| Chart size | 10‑inch |
|---|
Honeywell warrants the DR4300 as free of defective materials and workmanship and will repair or replace defective items without charge.
You can call Honeywell technical support in the United States and Canada at 1‑800‑423‑9883 or fax back at 1‑888‑423‑9883.
