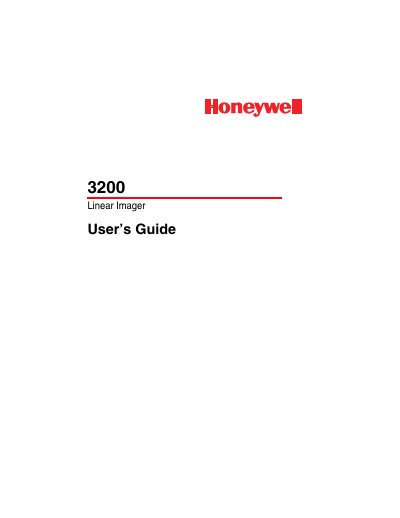

This document is about the user manual of the 3200 linear scanner
This User’s Guide explains how to unpack, install, and connect the Honeywell 3200 Linear Imager using USB, keyboard‑wedge, or RS‑232 interfaces. It covers basic setup, terminal settings, and the steps needed to program symbologies and data formats by scanning barcodes.
The manual also lists detailed product specifications, environmental limits, and maintenance procedures such as cleaning and cable replacement. Warranty and customer‑support information are provided at the end of the document.
| Height | 3.8 inches (9.52 cm) |
|---|---|
| Length | 6 inches (15.3 cm) |
| Width | 2.7 inches (6.8 cm) |
| Weight | 5.1 ounces (145 g) |
| Light Source | 626 nm ± 30 mn visible red LED |
| Scan Rate | 270 scans per second |
| Voltage Requirements | 5 VDC ± 5 % at imager |
| Operating Temperature | 32 °F to +122 °F (0 °C to +50 °C) |
| Storage Temperature | -4 °F to +140 °F (-20 °C to +60 °C) |
| Humidity | 0 % to 95 % non‑condensing at 122 °F (50 °C) |
| Mechanical Drop Rating | Operational after 25 drops from 4 ft (1.2 m) |
| Vibration Rating | Withstands 5 G peak from 22 to 300 Hz |
| ESD Sensitivity | 8 kV |
Use the menu command “Resetting the Standard Product Defaults” as described in Chapter 9.
