This product is a high efficiency electronic air cleaner that can be installed in the return air duct of a forced air heating, cooling, or ventilating system. It captures a significant amount of the airborne particles 0.5 microns and larger from the air circulated through it.

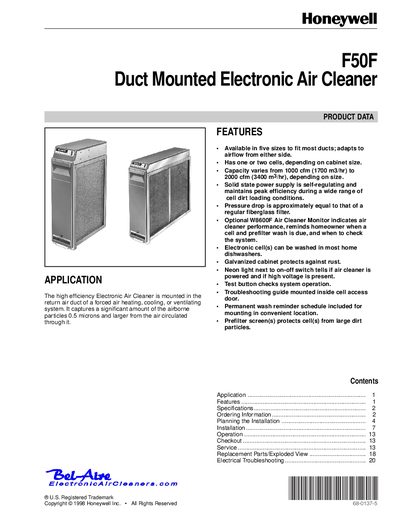

The Honeywell F50F Duct Mounted Electronic Air Cleaner is a high‑efficiency unit designed for installation in the return air duct of forced‑air heating, cooling, or ventilating systems. It captures particles 0.5 µm and larger, offers one or two electronic cells, and includes features such as a self‑regulating solid‑state power supply, neon power‑on indicator, and optional W8600F monitor.
The manual covers planning the installation, mounting positions, duct transitions, turning vanes, and offsets, as well as detailed wiring, power requirements, and service procedures. It also explains how to clean the electronic cells, use the optional monitor, and replace parts.
| Capacity | 1000–2000 cfm (1700–3400 m³/hr) |
|---|---|
| Power Consumption (one‑cell model) | 22 W max |
| Power Consumption (two‑cell model) | 36 W max |
| Collector Voltage | 4075 VDC |
The unit may be operated in ambient temperatures from 40 °F (4 °C) to 125 °F (52 °C).
The air cleaner can be configured with either one or two electronic cells, depending on cabinet size.
Yes, the electronic cells can be washed in most home dishwashers.
The optional W8600F Air Cleaner Monitor provides performance indication and alerts for filter and cell cleaning.
