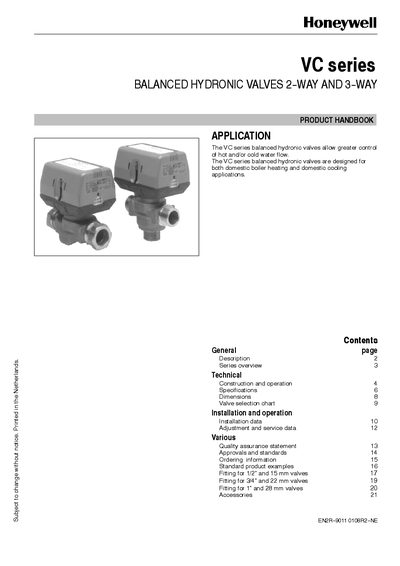

This handbook introduces the VC series balanced hydronic valves, including product features, models, specifications, installation methods and other information.
The VC series balanced hydronic valves are designed for domestic boiler heating and cooling applications. They are available as 2‑way (on‑off) or 3‑way (diverting or mixing) units and can be controlled by low‑ or line‑voltage SPST or SPDT controllers, such as thermostats or flow switches. The actuator head is removable and interchangeable, and the valve operates silently with minimal power consumption.
The handbook includes a series overview, technical specifications, dimensions, wiring diagrams, installation data, adjustment and service procedures, as well as ordering information and accessories. Detailed tables list pipe fitting sizes, voltage options, power consumption, pressure ratings, and material construction.
| Voltage options | 24 Vac, 100‑130 Vac, 200‑240 Vac |
|---|---|
| Power consumption | 6 W maximum at nominal voltages |
| Pressure differential | up to 4 bar |
| Fluid temperature range | 1 °C – 95 °C |
| Ambient temperature range | 0 °C – 65 °C |
| End switch rating | 70 mA |
| Maximum operating pressure differential | 4 bar |
| Valve body material | Bronze |
| Cartridge material | Ryton™ (polyphenylene sulphide) |
They can be controlled by low‑ or line‑voltage SPST or SPDT controllers, with actuator options for 24 Vac, 100‑130 Vac, or 200‑240 Vac.
No, the actuator only takes power while driving the valve to the commanded position, minimizing consumption.
Yes, the actuator head installation does not require draining of the system.
