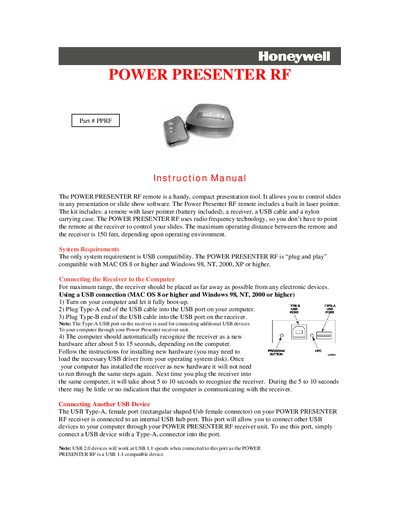

Power Presenter RF user manual
The POWER PRESENTER RF is a compact wireless presentation remote with a built‑in laser pointer. This manual explains system requirements, how to connect the receiver to a computer, and how to pair or train the remote.
Key sections cover using the remote, customizing keystrokes, replacing the CR2032 battery, full product specifications, FCC compliance, and troubleshooting steps for common issues.
| Range | Up to 150 feet |
|---|---|
| Transmitter Dimensions | 2.6" (66mm) L x 1.5" (338mm) W x 0.5" (13mm) H |
| Transmitter Weight | 1 oz (24 g) with batteries |
| Radio Frequency | 433 MHz |
| Laser Output | Diode Laser, 5 mW max at 650 nm, Class Ia |
| Battery Type | CR2032 lithium 3.0 V |
| Battery Life | 1 year under normal operation |
| Receiver Interface | USB port |
| Receiver Dimensions | 2.6" (66mm) L x 3.4" (86mm) W x 1.2" (31mm) H |
| Receiver Weight | 2 oz (59 g) excluding cable |
| Warranty | 1 year limited |
| Compliance | FCC part 15, Class B (U.S.), Industry Canada RSS‑210, FDA 21 CFR 1040 |
The remote can operate up to 150 feet from the receiver, depending on the environment.
Remove the battery cover using the alignment dot, take out the old CR2032 cell, and insert a new one with the positive side facing you.
A single receiver can support up to seven remotes.
The receiver is USB 1.1 compatible; USB 2.0 devices will operate at USB 1.1 speeds.
