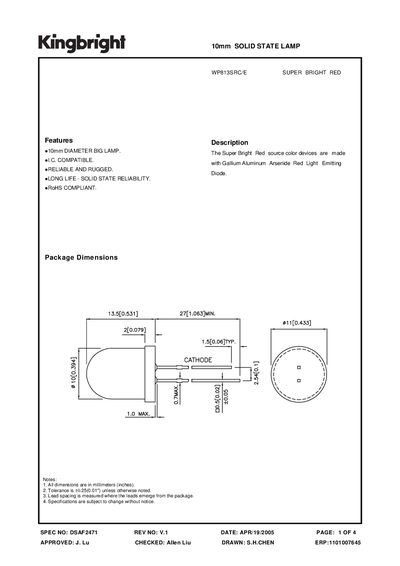

This document describes the characteristics of WP813SRC/E SUPER BRIGHT RED (GaAIAs) WATER CLEAR red light emitting diode, including physical dimensions, electrical characteristics, optical characteristics, etc
The WP813SRC/E is a 10 mm super‑bright red solid‑state lamp from Kingbright. It offers high luminous intensity, long life, and RoHS compliance for reliable LED applications.
The datasheet lists package dimensions, electrical and optical parameters such as forward voltage, peak wavelength, and reverse current, as well as absolute maximum ratings, derating curves, and packing specifications for bulk handling.
| Peak Wavelength | 660 nm |
|---|---|
| Forward Voltage (20 mA) | 1.85 V |
| Reverse Current (5 V) | 10 µA |
| Power Dissipation | 100 mW |
| DC Forward Current | 30 mA |
| Peak Forward Current | 150 mA |
| Operating Temperature | -40 °C to +85 °C |
| Capacitance | 95 pF |
| Package Dimensions | 13.5 mm × 27 mm × 2 mm (approx.) |
| RoHS Compliance | Yes |
The forward voltage is 1.85 V at a test current of 20 mA.
Yes, the device is RoHS compliant.
The maximum reverse voltage rating is 5 V.
The typical accuracy for wavelength sorting is ± ? nm (listed as +/-inm).
