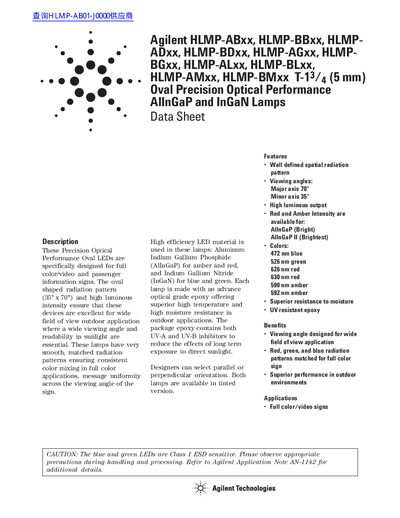

HLMP-ABxx, HLMP-BBxx, HLMP-ADxx, HLMP-BDxx, HLMP-AGxx, HLMP-BGxx, HLMP-ALxx, HLMP-BLxx, HLMP-AMxx, HLMP-BMxx T-13/4 (5 mm) Oval Precision Optical Performance AlInGaP and InGaN Lamps Data Sheet is a high luminous output T-13/4 (5 mm) Oval Precision Optical Performance AlInGaP and InGaN Lamp that has circular radiation pattern and large angle visibility. It is suitable for full color/video and passenger information sign applications.
The HLMP family of oval LEDs from Agilent is designed for full‑color/video and passenger information signs. The devices feature a 35° × 70° oval radiation pattern, high luminous output and UV‑resistant epoxy for outdoor durability. Various color options (blue, green, red, amber) are offered with matched radiation patterns for uniform color mixing.
The data sheet provides detailed electrical specifications such as forward voltage, maximum forward current, power dissipation and temperature ranges, as well as mechanical information including package dimensions, lead styles and recommended PCB hole sizes. Tables list part numbers, wavelengths and intensity bins for precise selection.
| Viewing angles | Major 70°, Minor 35° |
|---|---|
| Operating temperature range | -40 °C to +80 °C (blue/green), -40 °C to +100 °C (red/amber) |
| Power dissipation | 120 mW |
| Maximum forward current | 30 mA (blue/green), 50 mA (red/amber) |
The LEDs have a major axis of 70° and a minor axis of 35°.
They operate from –40 °C to +80 °C for blue/green devices and up to +100 °C for red/amber devices.
The maximum DC forward current is 30 mA for blue and green LEDs and 50 mA for red and amber LEDs.
Package dimensions are given in millimeters, for example 8.71 × 0.20 mm for the cathode and 1.50 × 20.15 mm for the lead.
