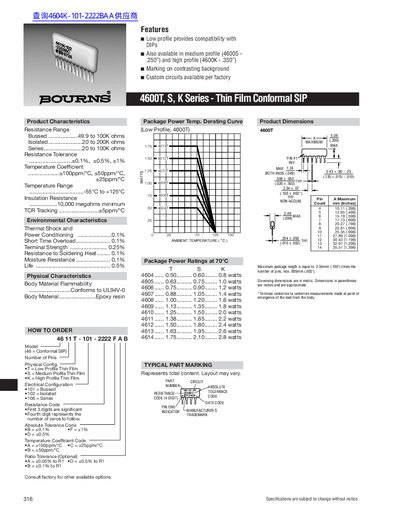

This document provides specifications for the 4600T, S, K Series Thin Film Conformal SIP, including resistance range, resistance tolerance, temperature coefficient, etc.
The 4600T series from Bourns offers thin‑film conformal SIP resistors in low, medium, and high profile configurations. They are available with bussed, isolated, or series electrical configurations and support a wide range of resistance values.
Key features include multiple tolerance options, temperature coefficient codes, and robust environmental specifications such as UL94V‑0 flammability and epoxy resin construction. The part is offered in 4‑ to 16‑pin packages with detailed mechanical dimensions for PCB layout.
| Resistance Range (Bussed) | 49.9 to 100 kΩ |
|---|---|
| Resistance Range (Isolated) | 20 to 200 kΩ |
| Pin Count Options | 4‑16 pins |
Bussed versions cover 49.9 kΩ to 100 kΩ, isolated versions cover 20 kΩ to 200 kΩ, and series versions cover 20 kΩ to 100 kΩ.
The parts are offered in configurations ranging from 4 to 16 pins.
