2SC3264 is a 64 Silicon NPN Epitaxial Planar Transistor. It is used for Audio and General Purpose. Maximum absolute ratings are VCBO=230V, VCEO=230V, VEBO=5V, IC=17A, IB=5A, PC=200W (Tc=25°C) and Tstg=150°C. Typical electrical characteristics are ICBO=100µA, IEBO=100µA, V(BR)CEO=230min, hFE=50min∗, VCE(sat)=2.0max, fT=60typ and COB=250typ.

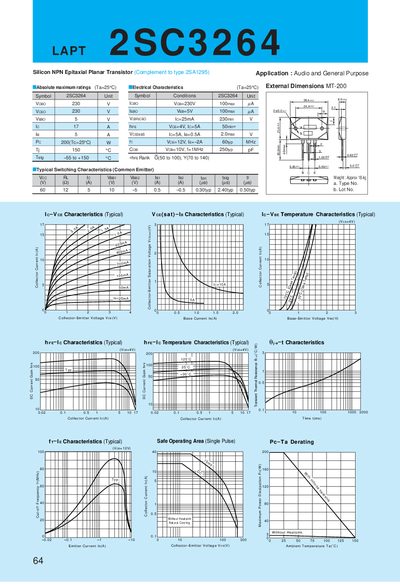

This application handbook provides the key electrical specifications, absolute maximum ratings and typical switching characteristics for the Allegro Sanken 64 Silicon NPN epitaxial planar transistor, a complement to type 2SA1295. It is intended for audio and general‑purpose circuit designs.
The document lists collector‑emitter voltage limits, base‑emitter voltage, maximum collector current, power dissipation, and operating temperature range, together with typical Ic‑Vce curves and safe‑operating‑area data for design reference.
| Collector‑Emitter Voltage (VCE max) | 230 V |
|---|---|
| Power Dissipation (PD max) | 200 W |
| Operating Temperature Range | -55 °C to +150 °C |
The maximum collector‑emitter voltage is 230 V.
The device is rated for operation from –55 °C up to +150 °C.
It can dissipate up to 200 W at a case temperature of 25 °C.
