2SA1216 is a silicon PNP type transistor produced by Panasonic. Its rated maximum collector-emitter voltage is -180V, the rated maximum emitter-reverse voltage is -5V, the rated maximum collector current is -17mA, the rated maximum emitter current is -5mA, the rated maximum power is 200W (25°C), and the rated storage temperature is -55~+150°C.

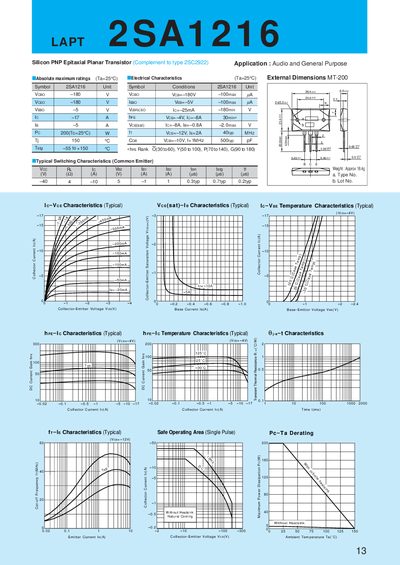

This datasheet describes the Allegro 2SA1216 silicon PNP epitaxial planar transistor, intended for audio and general‑purpose applications. It lists absolute maximum ratings, typical electrical characteristics, and mechanical dimensions.
Key specifications include a collector‑emitter voltage rating of 180 V, a maximum collector current of 8 A, power dissipation up to 200 W at 25 °C, and an operating temperature range from –55 °C to +150 °C. The device is supplied in a metal‑tab package weighing approximately 18.4 g.
| Collector‑Emitter Voltage (VCE max) | 180 V |
|---|---|
| Collector Current (IC max) | 8 A |
| Power Dissipation (PD max) | 200 W |
| Operating Temperature Range | -55 °C to +150 °C |
| Junction Temperature (Tj max) | 150 °C |
| Package Weight | ≈18.4 g |
The maximum collector current is 8 A.
It can operate from –55 °C up to +150 °C.
The device can dissipate up to 200 W at 25 °C.
The collector‑emitter voltage rating is 180 V.
