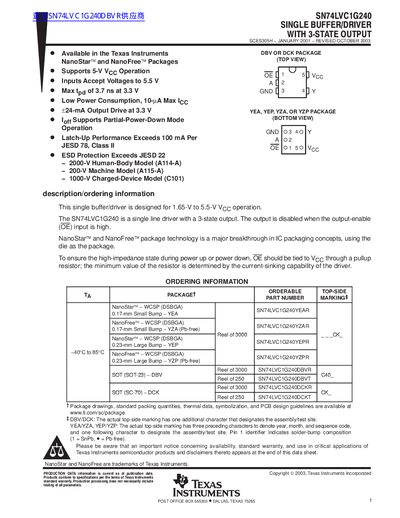

The SN74LVC1G240 is a single line driver that supports 1.65V to 5.5V VCC operation. This product uses NanoStar and NanoFree package technology, which is a breakthrough in IC packaging concepts.
The SN74LVC1G240 is a single line driver with a 3‑state output, designed for 1.65‑V to 5.5‑V operation. The output is disabled when the OE input is high, and the device includes partial‑power‑down mode to prevent back‑flow current.
The device is offered in NanoStar™ and NanoFree™ wafer‑level packages (DBV, DCK, YEA/YZA, YEP/YZP) with detailed mechanical drawings, thermal impedance data, and ordering information. Electrical characteristics such as propagation delay, output drive current, and ESD protection are specified for a range of supply voltages and temperatures.
| Maximum output drive current | +24 mA at 3.3 V |
|---|---|
| Low power consumption | 10 µA max |
| Propagation delay (tpg) | 3.7 ns at 3.3 V |
| ESD protection (Human‑Body Model) | 2000 V |
| Package thermal impedance (DBV) | 206 °C/W |
It can source up to +24 mA at a 3.3 V supply.
The device meets a 2000‑V Human‑Body Model, 200‑V Machine Model, and 1000‑V Charged‑Device Model.
