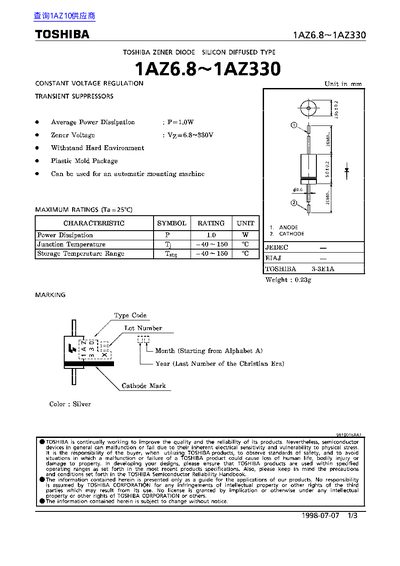

The Toshiba 1AZ6.8~1AZ330 series comprises silicon diffused Zener diodes with voltage ratings from 6.8 V up to 330 V. These devices are supplied in a plastic mold package and are suitable for automatic mounting processes.
Key specifications include a maximum power dissipation of 1.0 W, junction and storage temperature ranges of –40 °C to 150 °C, and a typical weight of 0.23 g. Detailed voltage, current, and temperature coefficients are provided for each part number in the series.
| Zener Voltage Range | 6.8~330 V |
|---|---|
| Average Power Dissipation | 1.0 W |
| Junction Temperature Range | -40 °C to 150 °C |
| Storage Temperature Range | -40 °C to 150 °C |
| Package Type | Plastic Mold Package |
| Weight | 0.23 g |
The diodes can dissipate up to 1.0 W of power.
Both the junction and storage temperature ranges are –40 °C to 150 °C.
Markings include a type code, lot number, month (letter), year (last digit), cathode mark, and the color is silver.
