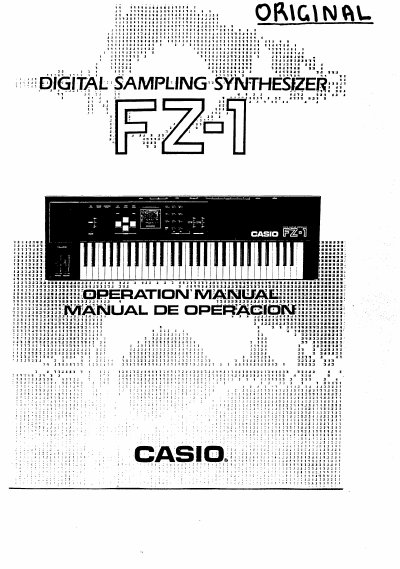

The Casio FZ-1 is a digital sampling synthesizer that offers high‑quality 36 kHz sampling, 16‑bit linear resolution, and extensive on‑board memory for voices and keyboard setups. This manual guides users through setup, operation, and maintenance, including front‑panel controls, external connections, and floppy‑disk data handling.
The guide is organized into sections covering basic operation modes, play mode functions, source‑select sub‑modes, voice and bank editing, effect/MIDI processing, and data‑dump procedures. Safety warnings, FCC compliance information, and troubleshooting tips are also included.
| Sampling rate | 36 kHz |
|---|---|
| Maximum sampling time at 36 kHz | 14.5 seconds |
| Built‑in floppy disk drive | 3.5 inch 2HD |
| Keyboard setups stored | Up to 8 |
| Optional memory expansion | HAM board MB‑10 |
The synthesizer samples audio at a rate of 36 kHz.
Up to eight separate keyboard setups can be saved in the onboard banks.
It has a built‑in 3.5 inch 2HD floppy disk drive for saving and loading data.
