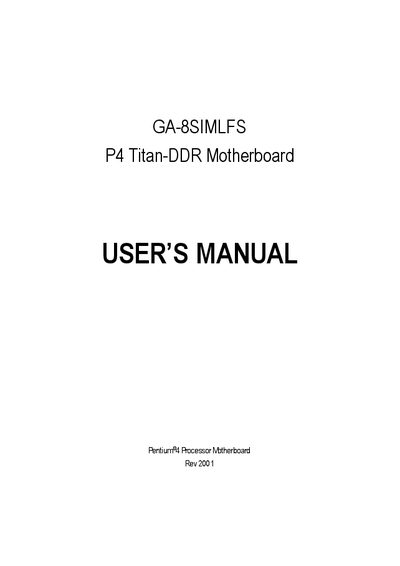

This is the user manual for GIGABYTE GA-8SIMLFS P4 Titan-DDR motherboard, which introduces the features and installation process of the motherboard.
This manual introduces the GA-8SIMLFS motherboard, its features, and layout. It includes a summary of specifications such as the Micro ATX form factor, SiS 650GX chipset, DDR memory support, and on‑board peripherals.
The guide walks you through hardware installation steps—CPU, memory, expansion cards, ribbon cables, and power connections—followed by BIOS configuration and troubleshooting tips. Safety precautions for handling sensitive components are also covered.
| Form Factor | Micro ATX (22.9 cm x 24.3 cm) |
|---|---|
| CPU Socket | Socket 478 for Intel Pentium 4 processors |
| Chipset | SiS 650GX Host/Memory controller |
| Memory Support | DDR266/200 SDRAM, up to 2 GB, 2‑slot, 2.5 V |
| On‑board IDE | 2 IDE ports, UDMA33/ATA66/ATA100 |
| USB Ports | 4 USB ports (rear x2, optional cable) |
| Audio | AC97 codec with Line‑In/Out, Mic, CD‑In, Game Port |
| LAN | RTL8100L Ethernet controller |
| BIOS | Award BIOS, 2 M‑bit Flash ROM |
