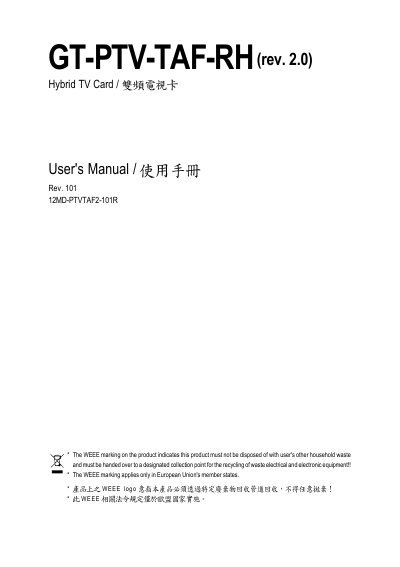

This document describes the features of GT-PTV-TAF-RH(rev. 2.0) Hybrid TV Card, including support for digital and analog TV, FM radio receiver, remote control, compact/low profile design, etc.
The GT-PTV-TAF-RH hybrid TV card provides digital (DVB‑T) and analog (NTSC/PAL/SECAM) TV reception, FM radio, video capture, time‑shift, and Twin TV functions. It includes a remote controller, video capture cable, and software driver CD for Windows XP and MCE.
The manual explains system requirements, hardware installation, driver/software setup, remote control usage, and advanced features such as EPG, SAP/Stereo sound, and scheduled recording. It also details safety markings and package contents.
| Supported digital TV standard | DVB‑T |
|---|---|
| Supported analog TV standards | NTSC, PAL, SECAM |
| CPU requirement | Intel Pentium® 4 1.8 GHz or higher |
| Memory requirement | 256 MB (recommended 512 MB or more) |
| Audio support | SAP and Stereo sound |
| Video capture inputs | S‑video, Composite, Audio |
| Twin TV capability | PIP/POP when two cards installed |
Open the TV player, go to Settings > TV > Signal Settings > Time‑Shifting and turn the feature on; the system will then record up to 30 minutes of live TV.
In the TV player select [TV] > [Settings] > [Scan Channel] and run the scan; repeat the scan for FM radio under the Radio menu.
