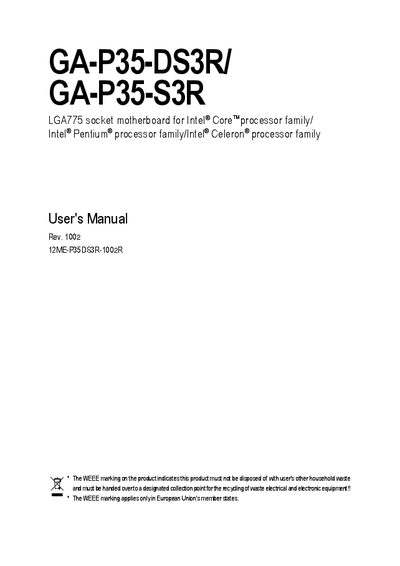

This document is the user manual for the GA-P35-DS3R/ GA-P35-S3R LGA775 socket motherboard. It provides information about the processor families that are compatible with the motherboard, as well as the features and functions of the processors.
This manual provides detailed instructions for installing and configuring the Gigabyte GA-P35-DS3R and GA-P35-S3R LGA775 motherboards. It includes hardware installation steps, BIOS configuration, driver installation, and troubleshooting guidance.
Additional sections cover the motherboard layout, block diagram, unique features such as Xpress Recovery and EasyTune5, and an appendix with SATA, audio, and safety information.
| Chipset | Intel P35 |
|---|---|
| Memory type | DDR2 |
| SATA ports | 2 SATA 3Gb/s |
| USB ports | 12 USB ports |
The revision number is printed on the motherboard as "REV: X.X", for example "REV: 1.0" indicates revision 1.0.
