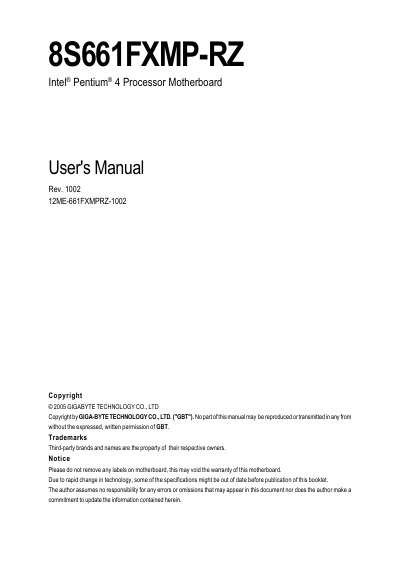

This document is the user manual for GIGABYTE 8S661FXMP-RZ motherboard
This manual covers the complete hardware installation process for the Gigabyte 8S661FXMP-RZ motherboard, including CPU, memory, expansion cards, and I/O peripherals. It also details BIOS configuration, driver installation, and troubleshooting steps.
Additional sections provide a features summary, motherboard layout, block diagram, and worldwide technical support contact information for Gigabyte customers.
| Supported memory | DDR400/DDR333/DDR266 DIMMs, up to 2 GB total |
|---|---|
| Maximum memory capacity | 2 GB |
| AGP slot | 1 AGP 4X/8X (1.5 V) slot |
| PCI slots | 3 PCI slots |
| Serial ATA ports | 2 SATA ports |
| USB ports | 8 USB 2.0/1.1 ports (rear x4, front x4) |
| Audio codec | Realtek ALC655 CODEC |
| LAN controller | ICS 1883 chip |
| Form factor | Micro‑ATX (24.4 cm × 23.0 cm) |
The board provides eight USB 2.0/1.1 ports – four on the rear panel and four front‑panel connectors.
It supports up to 2 GB of DDR memory using its two 184‑pin DDR slots.
The north bridge is a SiS 661FX chipset and the south bridge is a SiS 964 chipset.
