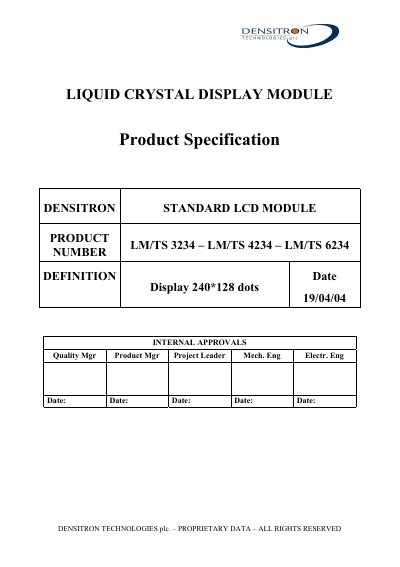

This document is about the product specification of a liquid crystal display module, describing its features and characteristics.
The Densitron LM/TS 3234 LCD module is a 240 × 128 dot STN/FSTN display with optional reflective, transflective or transmissive modes. It measures 144.0 × 104.0 × 14.3 mm (max) and includes a T6963C driver IC. Backlight options include none, LED, or CCFL, and the module operates from 0 °C to +50 °C (or –20 °C to +70 °C for storage).
The document provides mechanical and electrical specifications, pin assignments, and detailed handling precautions. Users are advised to protect the liquid‑crystal fluid, ground themselves to avoid static discharge, and store the module in a cool, dry environment to ensure reliability.
| Display format | 240 × 128 dots |
|---|---|
| Overall dimensions | 144.0 × 104.0 × 14.3 mm (max) |
| Viewing area | 114.0 × 64.0 mm |
| Dot size | 0.43 × 0.43 mm |
| Dot pitch | 0.45 × 0.45 mm |
| Driver IC | T6963C |
| Backlight type | None / LED / CCFL |
| Power supply voltage (Vpp‑Vss) | -0.3 V to +7.0 V |
| Operating temperature range | 0 °C to +50 °C (storage –20 °C to +70 °C) |
The module can be supplied without a backlight, with an LED backlight, or with a CCFL backlight.
The recommended power‑supply voltage (Vpp‑Vss) is between –0.3 V and +7.0 V.
Avoid contact with the liquid‑crystal fluid, use a protective transparent plate, keep the work area clean, ground yourself to prevent static discharge, and store the display in a cool, dry place away from direct sunlight.
