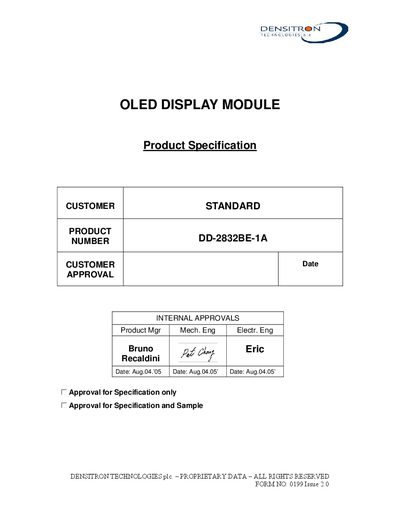

This document describes the main features, mechanical specifications, electrical specifications, optical specifications, functional specifications, packaging and labeling specifications, quality assurance specifications, reliability specifications, and handling precautions of the DD-2832BE-1A OLED display module produced by DENSITRON TECHNOLOGIES plc.
The DD-2832BE-1A is a 128 × 32‑dot passive‑matrix OLED display with a compact size of 33.4 × 14.5 × 1.8 mm and a driver IC SSD1303T6. It operates from –20 °C to +70 °C and can be stored between –30 °C and +80 °C.
The datasheet details absolute maximum ratings, pin assignments, power consumption (952 mW) and reliability test results. It also includes handling precautions such as static protection, cleaning methods, and recommended storage conditions to ensure long‑term performance.
| Display Format | 128 x 32 Dots |
|---|---|
| Overall Dimensions (W×H×T) | 33.4 x 14.5 x 1.8 mm |
| Viewing Area | 29.50 x 8.06 mm |
| Active Area | 27.50 x 6.06 mm |
| Dot Size | 0.195 x 0.17 mm |
| Dot Pitch | 0.215 x 0.19 mm |
| Weight | 2.0 g |
| Driver IC | SSD1303T6 (TCP) |
| Supply Voltage (Vpp) – Absolute Max | -0.3 to 4 V |
| Operating Temperature | -20 °C to +70 °C |
| Storage Temperature | -30 °C to +80 °C |
| Power Consumption (100% pixels ON) | 952 mW |
The Vpp rating is –0.3 V to 4 V and the driver supply voltage Vee is 0 V to 15 V.
Avoid static charge, protect the panel with a transparent plate, clean gently with isopropyl or ethyl alcohol, and store it in a dark, dry place.
The module operates from –20 °C up to +70 °C.
