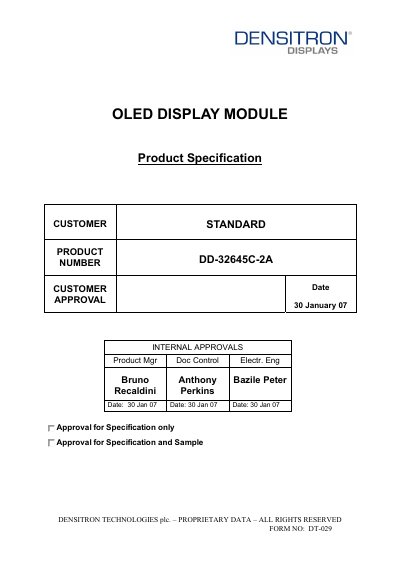

This document describes the main features and characteristics of the DD-32645C-2A OLED display module from DENSITRON TECHNOLOGIES plc.
The DD-32645C-2A is a 132 × 64‑dot passive‑matrix OLED display module with a compact size of 33.40 × 21.70 × 1.8 mm and a weight of 2.4 g. It uses the SSD1303 driver IC and operates from a supply voltage of –0.3 V to 4 V (Vpp) with a driver supply range of 0 V to 15 V.
The document provides mechanical and electrical characteristics, pin‑out details, reliability test results, and safety handling instructions. It also outlines recommended cleaning methods, storage conditions, and precautions against static charge to ensure long‑term performance.
| Display Format | 132 × 64 Dots |
|---|---|
| Driver IC | SSD1303 |
| Supply Voltage (Vpp) | -0.3 V to 4 V |
| Operating Temperature | -20 °C to +70 °C |
| Storage Temperature | -30 °C to +80 °C |
| Weight | 2.4 g |
The module can operate up to +70 °C.
Lightly wipe the surface with a soft cloth soaked with isopropyl alcohol, ethyl alcohol or trichlorotrifluorothane.
It uses the SSD1303 driver IC.
Store it in a dark place at 25 °C ± 10 °C with humidity below 50 % RH, away from dust and organic solvents.
