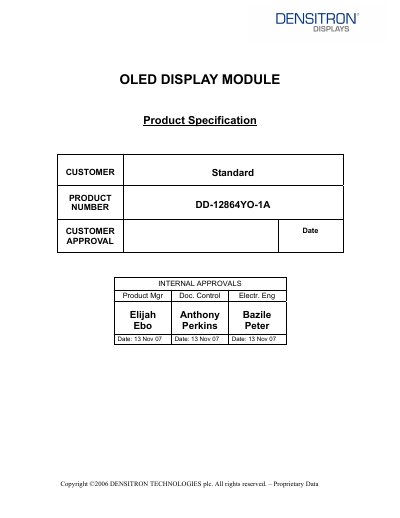

This document is about the specification of DD-12864YO-1A product. It mainly introduces the main features and characteristics of the product.
The DD-12864Y0-1A is a monochrome yellow OLED display module with a 128 × 64 dot matrix. It measures 73.00 × 41.86 × 2.00 mm, has an active area of 61.41 × 30.69 mm and uses the SSD1325 driver IC. The module operates from –30 °C to +70 °C and requires a logic supply of about 2.8 V and a display supply of about 15 V.
The datasheet details mechanical and electrical specifications, optical characteristics, reliability test results and handling precautions. It also includes pin assignments, timing characteristics, power‑up/down sequences, packaging information and safety recommendations for static discharge and cleaning.
| Display Format | 128 x 64 Dots |
|---|---|
| Overall Dimensions | 73.00 x 41.86 x 2.00 mm |
| Colour | Monochrome Yellow |
| Active Area | 61.41 x 30.69 mm |
| Viewing Area | 63.41 x 32.69 mm |
| Driver IC | SSD1325 |
| Operating Temperature | -30 °C ~ +70 °C |
| Supply Voltage (Vpp) Typical | 2.8 V |
| Supply Voltage for Display (Vcc) Typical | 15 V |
| Weight | 21 g |
| Dot Size | 0.45 x 0.45 mm |
| Dot Pitch | 0.48 x 0.48 mm |
The module operates from –30 °C to +70 °C.
The display uses the SSD1325 driver IC.
Ground yourself and all equipment before handling, connect unused inputs to Vpp or Vgs, and avoid applying signals before power is on.
